SanDisk Cruzer Glide 16GB (SDCZ60-016G) – Broken Connector Repair, 32GB NAND Surprise

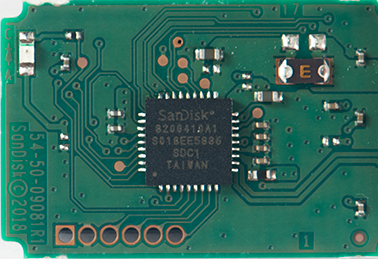

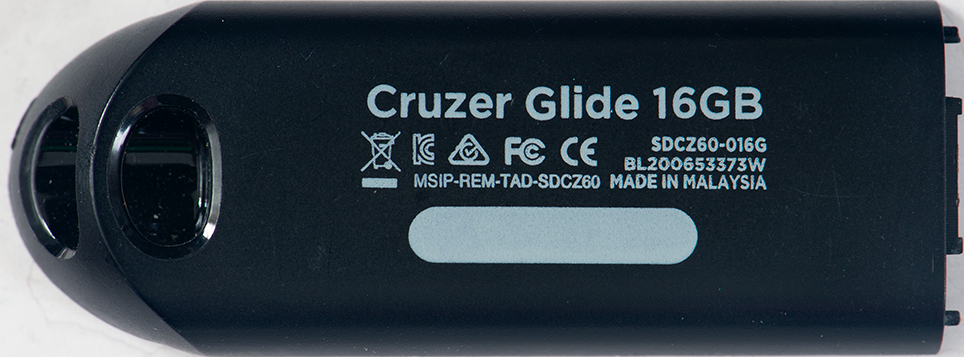

We received a SanDisk Cruzer Glide 16GB (SDCZ60-016G) with a broken USB connector. The connector had been snapped off, taking several of the PCB traces with it — a common failure mode for the Cruzer Glide line, where the slim retractable housing offers little structural protection for the solder joints. After removing the plastic casing and inspecting the damage under the microscope, we determined the board was repairable. The 820-0410A1 controller and passive components were intact — the damage was limited to the connector pad area.

We rebuilt the broken traces with jumper wires soldered directly to the pads, restoring the USB data lines (D+/D−), VBUS, and ground connections. Once the connector was re-established, the controller enumerated normally and the drive mounted with a fully intact file system — all data recovered.

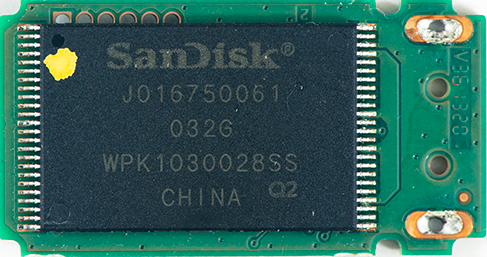

An interesting detail on this particular unit: when we examined the NAND, we found that SanDisk had used a 32GB flash chip — despite selling this as a 16GB drive. The controller’s firmware was configured to expose only 16GB of the 32GB physical capacity, with the remaining half reserved as overprovisioning. This is a technique manufacturers use to extend the lifespan and reliability of the drive — especially when the NAND is lower-grade or refurbished silicon that may have higher defect rates. By hiding half the capacity, the controller has a large pool of spare blocks to rotate in as cells wear out or fail, which helps maintain the drive’s rated endurance over time. It’s a common practice in the industry, but it’s always notable to see a drive with a 2:1 overprovisioning ratio — a strong indicator that the flash was not top-tier binned parts.

If your SanDisk Cruzer Glide or any flash drive has a broken connector, don’t assume the data is lost. This type of physical repair is something we handle regularly. Contact us for a free evaluation.
